Tier Two nozzles involve an advanced variable flow configuration.  A Tier 2 Nozzle body has female threaded ports in a particular orifice pattern and associated, replaceable male inserts that are drilled for a particular pressure (PSI) and flow (GPM).

These Replaceable and variable inserts allow for flexibility in orifice pattern use and for use on multiple machine with different GPM and PSI.

These inserts are individually drilled to extremely tight parameters and offer tighter streams than our standard Tier 1 nozzles.

Parts Table

Part Number: AP0062HPF
Thread: 1/16″ X 14 MNPT

Part Number: AP0250HPF-15
Thread: 1/4″ X 18MNPT

Part Number: AP0250HPF-15
Thread: 1/8″ X 27 MNPT

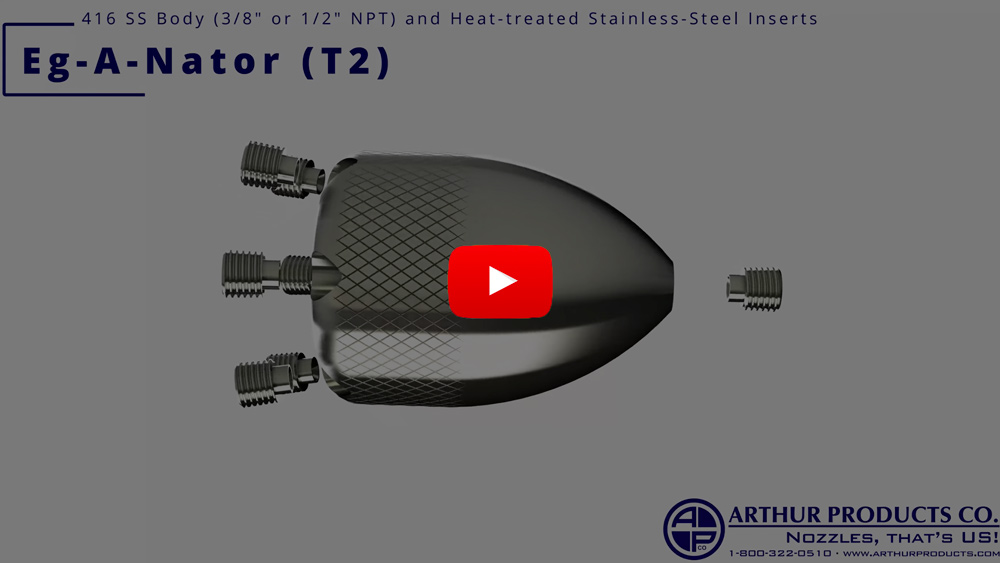

Part Number: AP0375EG2-10
Thread: 3/8 – 18 FNPT
# of Ports: 7
Insert Size: 0.6250″
OD: 1.375″
Length: 2.00″

Part Number: AP0500EG2-10
Thread: 1/2 X 14 FNPT
# of Ports: 7
Insert Size: 0.6250″
OD: 1.375″
Length: 2.00″

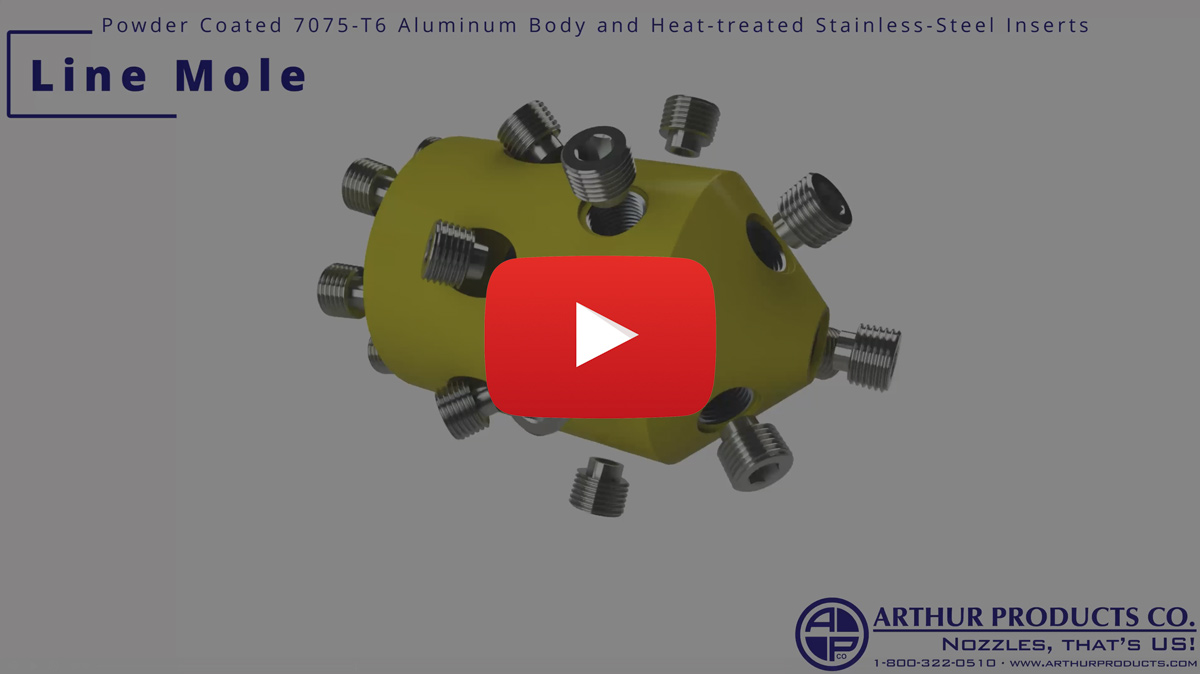

Part Number: AP0500LM-16
Thread: 1/2 X 14 FNPT
# of Ports: 16
Insert Size: 0.06250″
OD: 1.125″
Length: 3.250″

Part Number: AP0375YJ-22
Thread: 3/8 X 18 FNPT
# of Ports: 22
Insert Size: 0.1250″
OD: 2.00″
Length: 3.00″
Material: Aluminum

Part Number: AP0500YJ-22
Thread: 1/2 X 14 FNPT
# of Ports: 22
Insert Size: 0.1250″
OD: 2.00″
Length: 3.00″
Material: Aluminum

Part Number: AP0750YJ-22
Thread: 3/4 X 14 FNPT
# of Ports: 22
Insert Size: 0.0625″
OD: 2.00″
Length: 3.00″
Material: Aluminum

Part Number: AP0375CZ2-10
Thread: 3/8 X 18 FNPT
# of Ports: 11
Insert Size: 0.0625″
OD: 1.380″
Length: 2.250″

Part Number: AP0500CZ2-10
Thread: 1/2 X 14 FNPT
# of Ports: 11
Insert Size: 0.0625″
OD: 1.380″
Length: 2.250″
