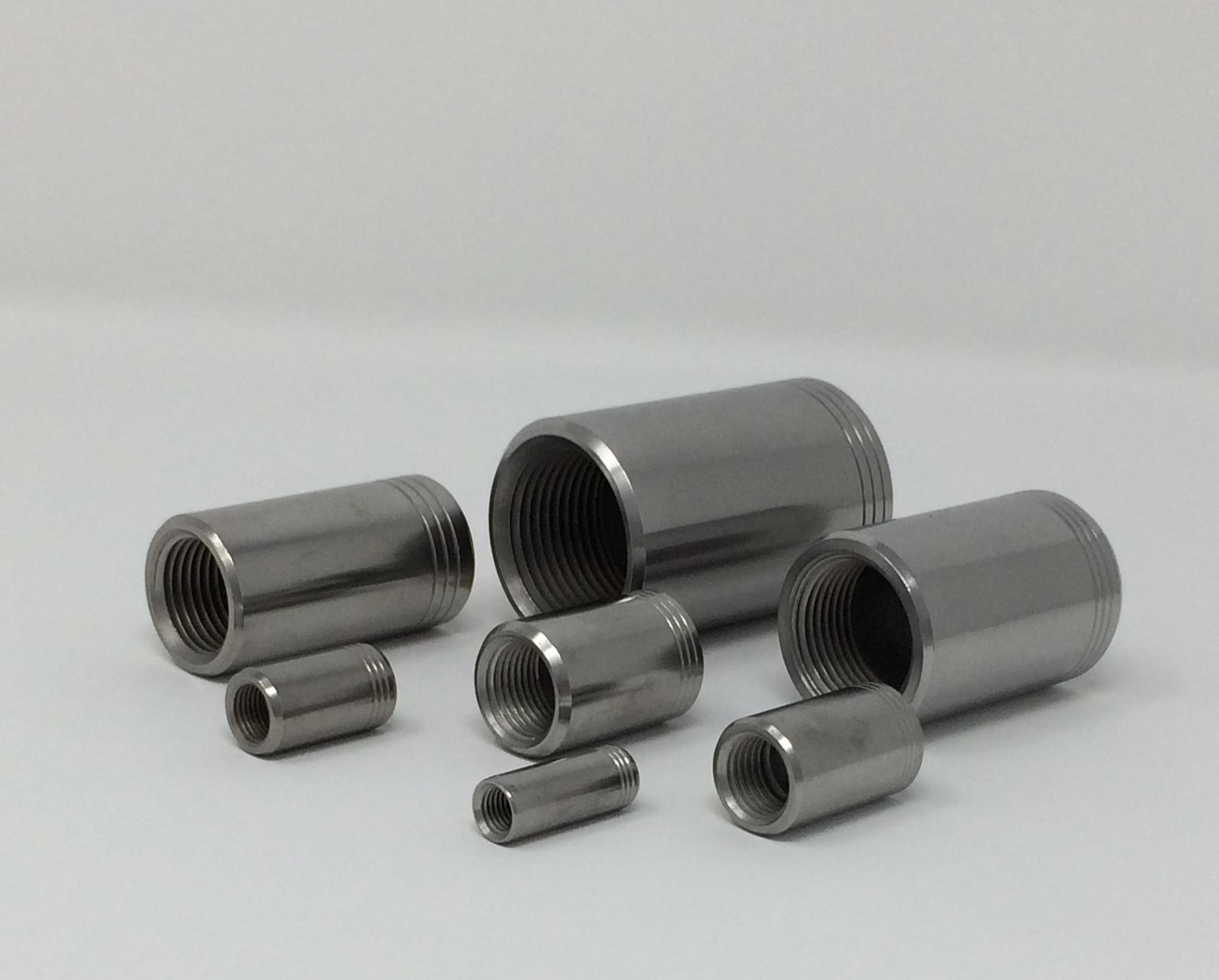

The Slim-Line Coupler (SC) is designed to join male threaded components without interference.  Manufactured from heat-treated stainless steel, the APC Slim-Line couplers are rated up to 15,000 PSI.

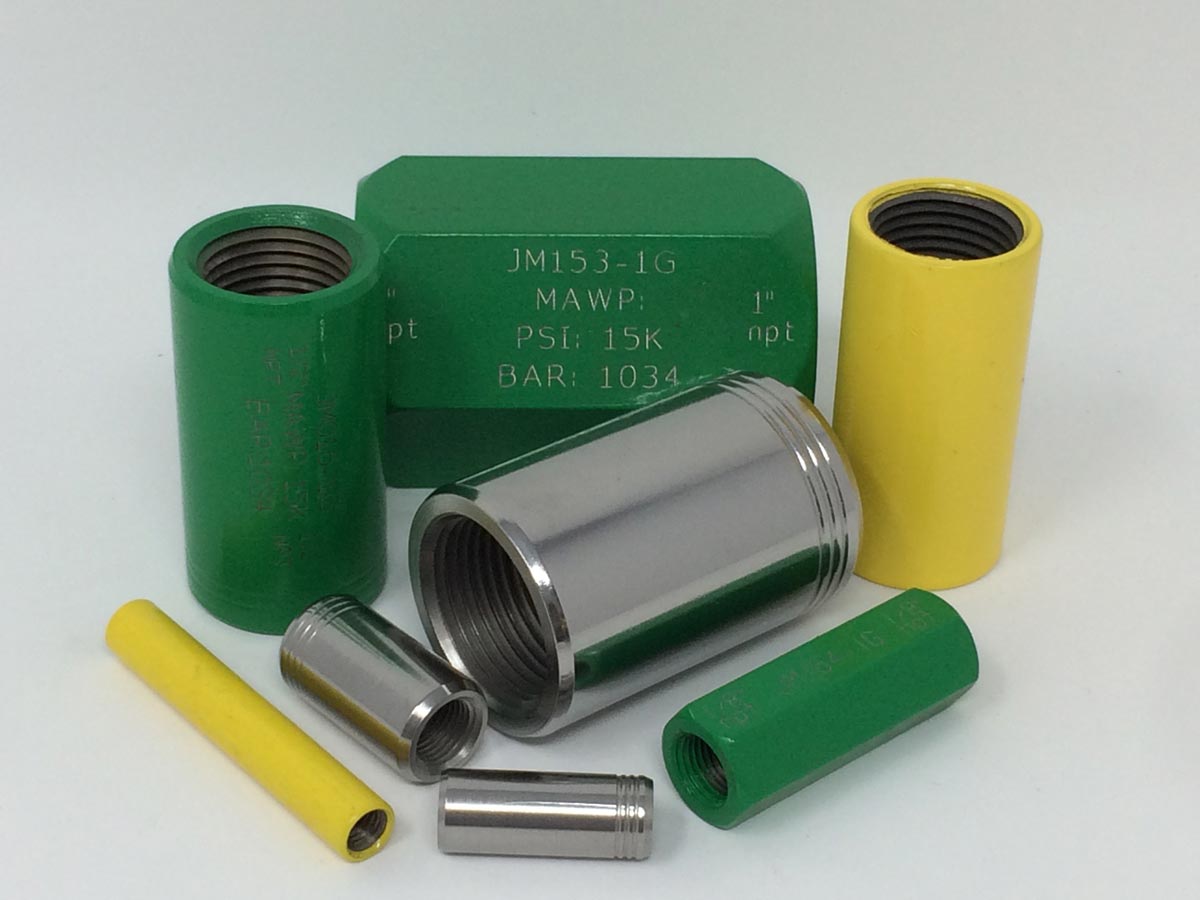

Stainless Steel hex couplings provide a wrench flat for ease in joining lances, pipe or hose. All couplers below are rated for 15K psi (MAWP).

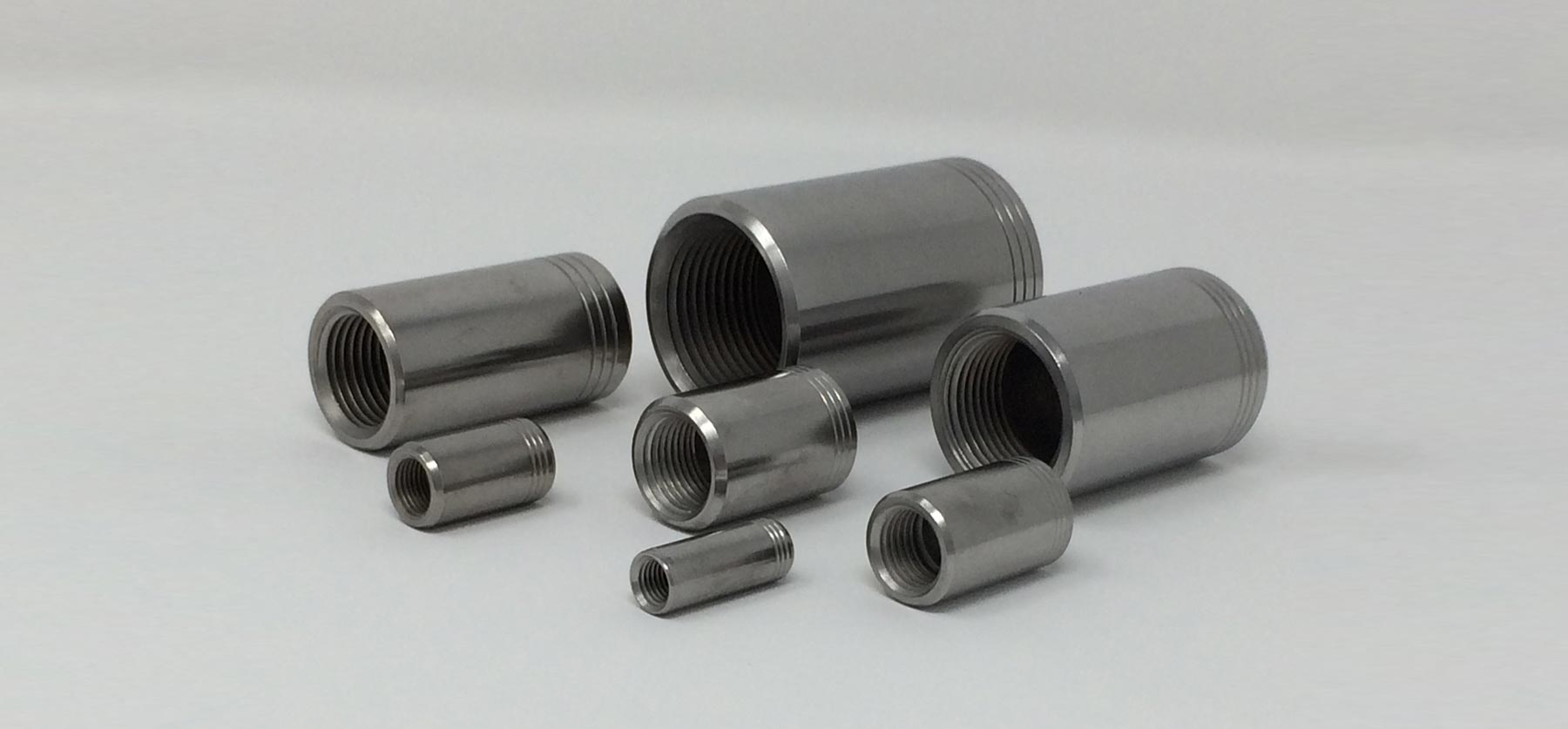

Coupler F-F (Slimline Smooth)

Part Number: AP0062SC-15
FNPT: 1/16 x 27
OD: 0.3860″
Length: 1.000″

Part Number: AP0125SC-15
FNPT: 1/8 x 27
OD: 0.5620″
Length: 1.000″

Part Number: AP0250SC-15
FNPT: 1/4 x 18
OD: 0.6870″
Length: 1.125″

Part Number: AP0375SC-15
FNPT: 3/8 x 18
OD: 0.8430″
Length: 1.250″

Part Number: AP0500SC-15
FNPT: 1/2 x 14
OD: 1.0625″
Length: 2.000″

Part Number: AP0750SC-15
FNPT: 3/4 x 14
OD: 1.3120″
Length: 2.000″

Part Number: AP1000SC-15
FNPT: 1.0 x 14
OD: 1.5000″
Length: 2.500″

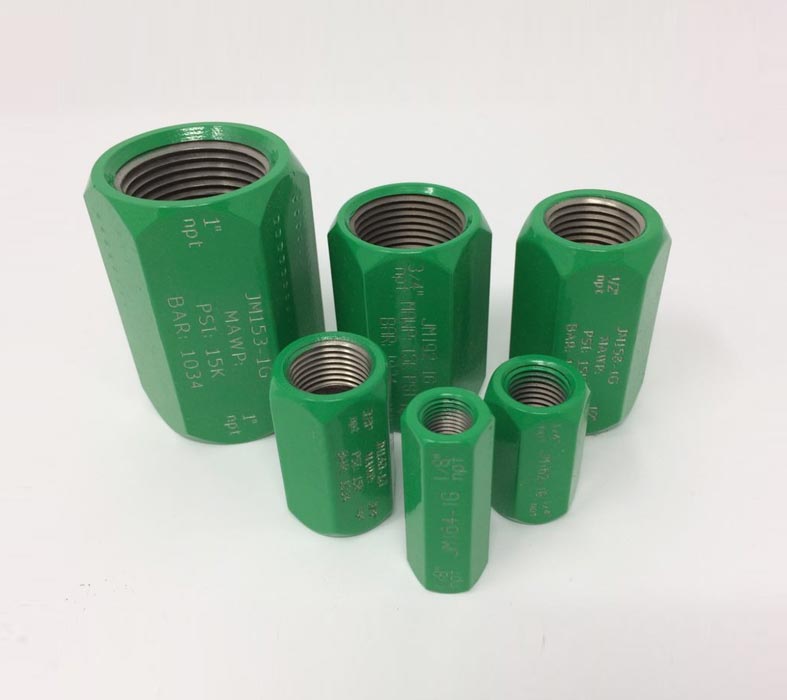

Coupler F-F (Hex)

Part Number: AP0125HC-15
FNPT: 1/8 x 27
OD: 0.5625
Length: 1.625

Part Number: AP0250HC-15
FNPT: 1/4 x 18
OD: 0.75
Length: 1.25

Part Number: AP0375HC-15
FNPT: 3/8 x 18
OD: 0.875
Length: 1.5

Part Number: AP0500HC-15
FNPT: 1/2 x 14
OD: 1.125
Length: 2

Part Number: AP0750HC-15
FNPT: 3/4 x 14
OD: 1.25
Length: 2

Part Number: AP1000HC-15
FNPT: 1.0 x 14
OD: 1.625
Length: 2.5

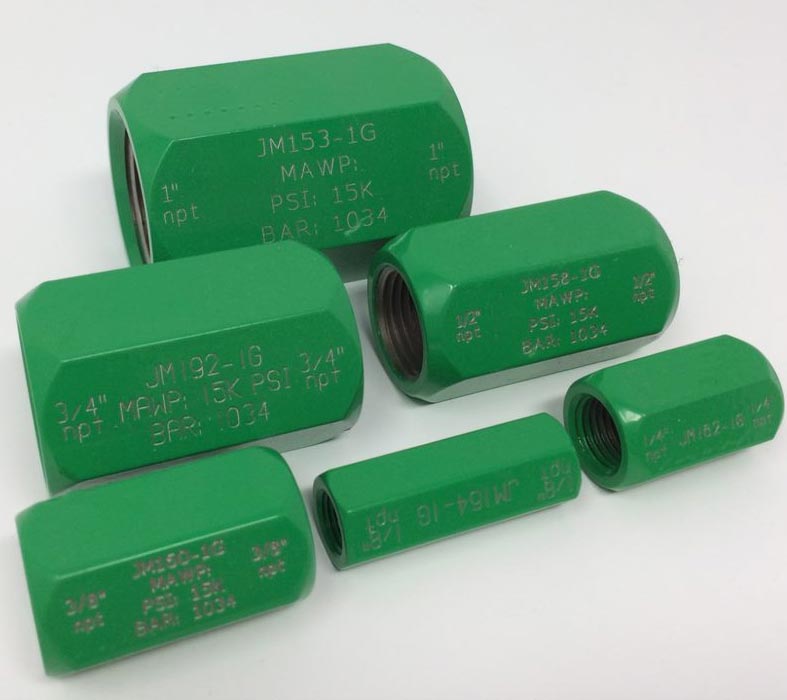

Coupler F-F (Hex Green )

Part Number: JM164-1G
FNPT: 1/8 x 27
OD: 0.5625
Length: 1.625

Part Number: JM162-1G
FNPT: 1/4 x 18
OD: 0.75
Length: 1.25

Part Number: JM160-1G
FNPT: 3/8 x 18
OD: 0.875
Length: 1.5

Part Number: JM158-1G
FNPT: 1/2 x 14
OD: 1.125
Length: 2

Part Number: JM192-1G
FNPT: 3/4 x 14
OD: 1.25
Length: 2

Part Number: JM153-1G
FNPT: 1.0 x 14
OD: 1.625
Length: 2.5
